Fischer 500709, Rohrschelle, Schwarz, Stahl, 108 - 114 mm, 10,2 cm (4"), EPDM, Styrol-Butadien (SBR), Zink Stahl, 1,5 kN

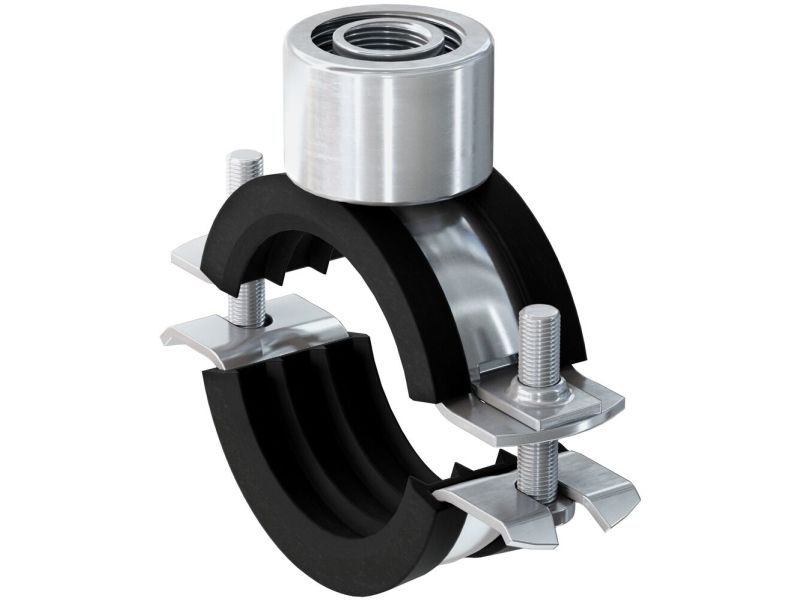

The fischer pipe clamp FRS Triple is a two-screw pipe clamp made from zinc-plated steel in material quality DD11 with a triple M8/M10 and ½" thread. The rapid-locking mechanism allows for a quick and easy installation. The two-screw version guarantees optimised adjustment in line with the outer diameter of the pipe. Together with the triple connecting thread, this increases flexibility. This enables pipelines with an outer diameter of 15 to 169 mm to be securely fixed with a threaded rod or stud screw indoors. With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109. The fischer FRS is suitable for applications in the temperature range from -50 °C to +100°C.

Advantages
- The connecting nut with combination thread M8 / M10 / 1/2” allows for optimised mounting positioning.
- The rapid-locking mechanism allows for fast and time-saving installation.
- The tight fit of the sound insulation insert prevents it from falling out when aligning the pipe.
- The two screws allow for ideal adaptation to suit the outer pipe diameter.

Properties
- Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
- Zinc plating: electro zinc plated
- Connecting nut: resistance welded, M8 / M10 / 1/2"
- Locking screw: flat head screw with combination recessed head
- Material sound insulation insert: SBR/EPDM; chlorine-free; silicone-free
- Sound insulation: for DIN 4109
- Temperature range: -50 °C to +110 °C
- Hardness: 45 ± 5° Shore A
- Fire behaviour: DIN 4102: Class B2
