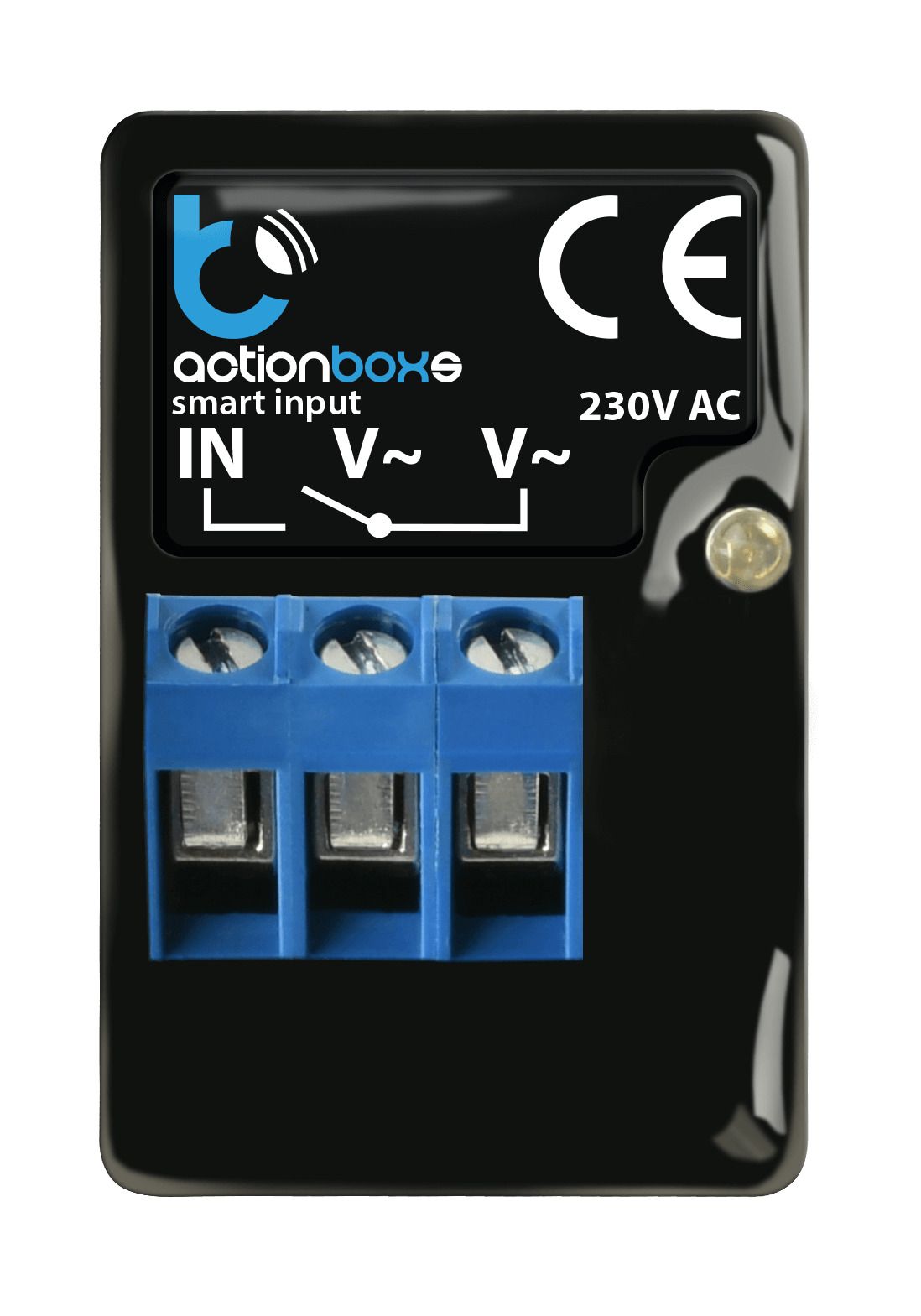

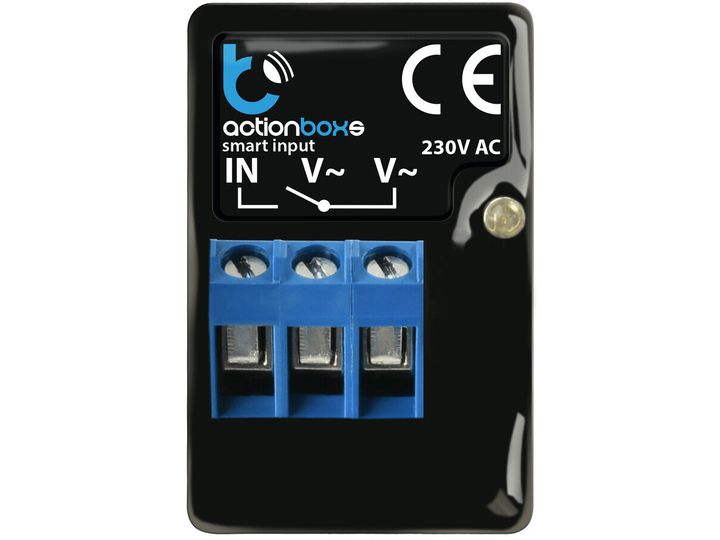

Blebox Einkanaliger Auslöser BLEBOX actionBoxS 230V

230V mini action trigger. Connect a motion sensor, a button to control another device or receive notifications

Signal as a notification
After receiving a signal, e.g. from a motion sensor, a water level sensor (e.g. a waste tank) or another alarming device (smoke detector), the controller may send a notification to the phone. Don’t worry about missing an event.

Signal as an control action
Add an actionBoxS to a motion sensor, for example, to control other BleBox controllers.
For example: After motion detection, wirelessly turn on / off lights in the entire garden using WiFi, without running separate light circuits or adding many motion sensors.

Central button
If you need to create a single, central button or turn on many different devices at the same time, you can do it with the actionBoxS, put it in the button box and control various controllers at the same time via the WiFi network

Versatile use
The controller is powered by 230V and allows to use any 230V short-circuit (to L or N) as a signal (action configuration to any edge).
This allows not only to receive the “signal” from other devices, but also to connect any button – bell (monostable) or candlestick (bistable)

Miniature size
The miniature size of the device, allows it to be used as an “implant” of other existing devices.
Available in two versions:
– actionBoxS
– actionBoxS W (Wired)

Cooperation - many actions
Configuration of up to 30 different actions allows to control many devices based on one signal, clicking a button.
In case of control of more devices, connect second actionBoxS in parallel to the same signal, button or use actionBoxS to trigger configured actions on other controllers of actionBox family (e.g. control of floors of a building).
