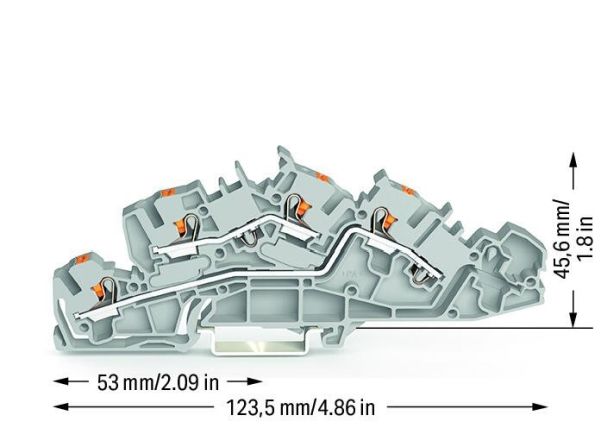

Wago 2205-7642, 6,2 mm, 123,5 mm, 50 Stück(e)

Artikelnummer: [25574793] | Produzent: WAGO | EAN: 4066966165210
Externen Lager (5-7 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 5-7 Werktage.. Mehr Info
Versandoptionen  - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
3,57
Versand mit DHL zur Adresse
7,60
Versand mit GLS - PaketShop
9,16
Versand mit GLS zur Adresse
11,90
Alle Versandoptionen anzeigen (4)
EUR 10,91
ex. MwSt. 9,17
Gesamtbetrag inkl. Versand. 14,48
Lesen Sie weitere Spezifikationen und Beschreibung

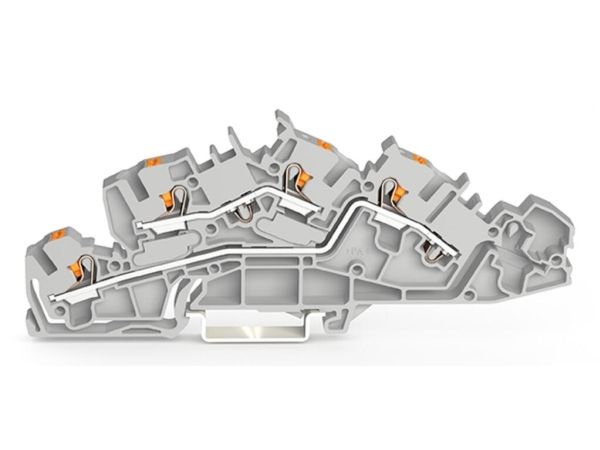

Multilevel installation terminal block, 2205 Series, Push-in CAGE CLAMPThis multilevel installation terminal block (item number 2205-7642) is designed for quick and simple connections. Strip lengths must be between 11 and 13 mm when connecting conductors to this multilevel installation terminal block. Featuring conductor terminals along with Push-in CAGE CLAMP, this connector delivers reliable performance. Our Push-in CAGE CLAMPis a universal, maintenance-free connection solution for all conductor types, featuring a winning design: It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor's ferrule is not necessary. Depending on the conductor type, this multilevel installation terminal block is ideal for conductor cross sections ranging from 0.5 mm² to 6 mm².
