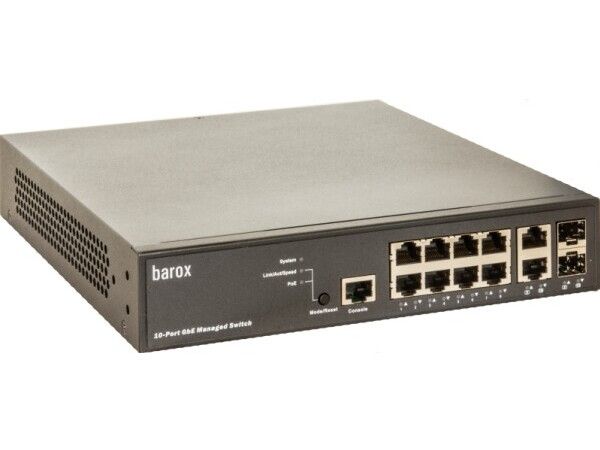

Barox RY-LGSP23-10G, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-Einbau, 1U
Artikelnummer: [4122157] | Produzent: Barox | Modell nummer: RY-LGSP23-10G | EAN: 5715328120259
Ausverkauft (Lieferzeit unbekannt)
Nicht auf Lager. Mehr Info
Nicht auf Lager.
Versandoptionen - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
Kostenloser Versand
Versand mit DHL zur Adresse
Kostenloser Versand
Versand mit GLS - PaketShop
Kostenloser Versand
Versand mit GLS zur Adresse
Kostenloser Versand
Alle Versandoptionen anzeigen (4)
EUR
677,22
ex. MwSt. 569,09
Gesamtbetrag inkl. Versand.
677,22
Gib mir Bescheid, wenn das Produkt wieder verfügbar ist
Die Funktion setzt voraus, dass Sie angemeldet sind. Erstellen Sie einen Nutzer und verwenden Sie unser intelligentes Listensystem, um zukünftige Einkäufe, regelmäßige Einkäufe oder Wunschlisten zu verfolgen.
Jetzt registrieren
Anmelden
Jetzt registrieren
Anmelden
Send på mail
Being developed for tasks with high data volume, this layer 2/3 switch with L3 fonctions is suitable for example for video over IP and video streaming in connection with multicast as well. IP-cameras are supplied by PoE through the data cable. Its compact design and reduced number of ports make this switch ideal for smaller plants or as a remote unit in a larger network. With its extensive management possibilities, it is also suitable for complex network structures.
Video-friendly features
Extra high backplane performance for a smooth video transmission with all ports assigned. Support of Jumbo Frames up to 9600Bytes by 100MBit/s. MAC-address restriction ensures port security.
Active monitoring of the camera
Switch-powered cameras by PoE are constantly monitored. In case of a camera failure the switch automatically restarts the camera. If this is not possible the switch alarms by SNMP.
Active monitoring PoE-supply
The switch alarms by SNMP in case of sudden excessive power consumption by a defect camera for example.
Active management of the PoE-performance
The PoE-ports can be started by time intervals so as to prevent an overload of the PoE power supplies.
DMS (Device Management System)
This switch disposes of an integrated network monitoring and control system which gives the user a good overview over the whole network in an easy way. This DMS-system has the following qualities:
Graphical network map
The network map gives a quick overview over all switches and terminal devices such as IP-cameras or servers indicating the IP-address, type of device and equipment. Plans and maps can be saved as background pictures and thus enable the user to access to certain devices without knowledge of the entire IP-structure.
Device search
This function enables the access to a specific device also in large networks. Recently added devices, as per example a new IP-camera, are immediately displayed and thus enable a direct access.
Data traffic display
Graphical display of data traffic per port in a time axis.
Error handling and security
Network diagnosis between master switch and terminal devices. Protective mechanisms such as data flow restriction guarantee an effective protection against inadvertent access. IEEE802.3ah and IEEE802.1ag provide tools for structuring of networks.
Video-friendly features
Extra high backplane performance for a smooth video transmission with all ports assigned. Support of Jumbo Frames up to 9600Bytes by 100MBit/s. MAC-address restriction ensures port security.
Active monitoring of the camera
Switch-powered cameras by PoE are constantly monitored. In case of a camera failure the switch automatically restarts the camera. If this is not possible the switch alarms by SNMP.
Active monitoring PoE-supply
The switch alarms by SNMP in case of sudden excessive power consumption by a defect camera for example.
Active management of the PoE-performance
The PoE-ports can be started by time intervals so as to prevent an overload of the PoE power supplies.
DMS (Device Management System)
This switch disposes of an integrated network monitoring and control system which gives the user a good overview over the whole network in an easy way. This DMS-system has the following qualities:
Graphical network map
The network map gives a quick overview over all switches and terminal devices such as IP-cameras or servers indicating the IP-address, type of device and equipment. Plans and maps can be saved as background pictures and thus enable the user to access to certain devices without knowledge of the entire IP-structure.
Device search
This function enables the access to a specific device also in large networks. Recently added devices, as per example a new IP-camera, are immediately displayed and thus enable a direct access.
Data traffic display
Graphical display of data traffic per port in a time axis.
Error handling and security
Network diagnosis between master switch and terminal devices. Protective mechanisms such as data flow restriction guarantee an effective protection against inadvertent access. IEEE802.3ah and IEEE802.1ag provide tools for structuring of networks.
