TE Connectivity 5748477-1
Artikelnummer: [4313843] | Produzent: TE Connectivity | Modell nummer: 5748477-1 | EAN: 2050002872554
Externen Lager (5-6 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 5-6 Werktage. Mehr Info
Versandoptionen - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
3,57
Versand mit DHL zur Adresse
7,60
Versand mit GLS - PaketShop
9,16
Versand mit GLS zur Adresse
11,90
Alle Versandoptionen anzeigen (4)
EUR
39,58
ex. MwSt. 33,26
Gesamtbetrag inkl. Versand.
43,15
Zur Liste hinzufügen
Die Funktion setzt voraus, dass Sie angemeldet sind. Erstellen Sie einen Nutzer und verwenden Sie unser intelligentes Listensystem, um zukünftige Einkäufe, regelmäßige Einkäufe oder Wunschlisten zu verfolgen.
Send på mail

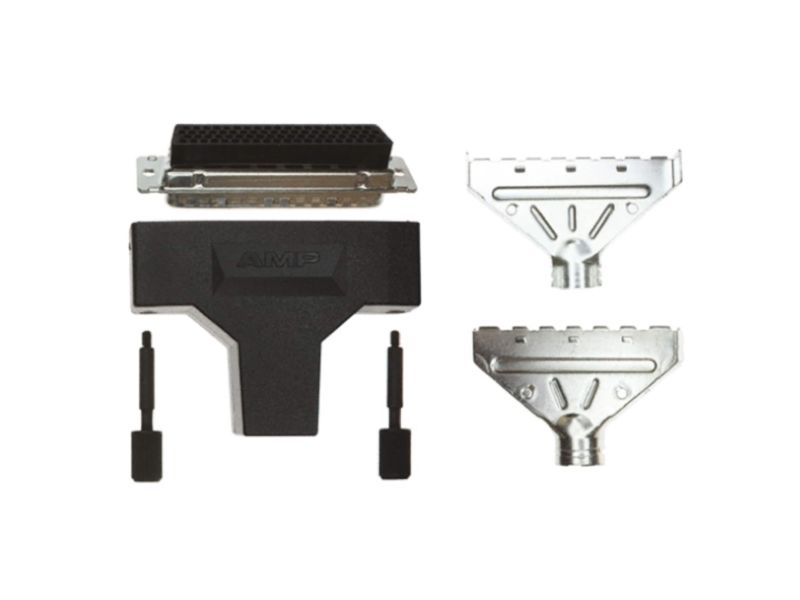

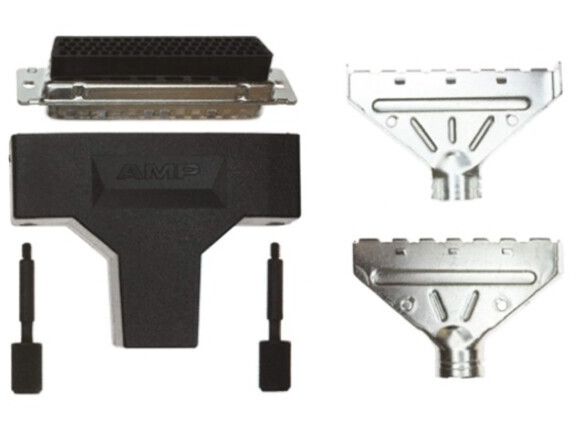

AMPLIMITE D-Sub Connector, HDP-22 Snap-In Contact Series, Shielding Hardware Enclosure Kits
AMPLIMITE d-sub connector HDP-22 snap-in contact series shielding hardware enclosure kits. Each kit contains a connector with a tin plated steel shell and 94V-0 black thermoplastic insert, tin plated steel inner and outer shields a black PVC enclosure and two zinc alloy jackscrews.
HDP-22 d-sub connector kits stock number
718-3953
and
718-3941
accept a recommended cable outer diameter of 4.83 to 8.38mm, stock number
719-9725
5.51 to 11.05mm diameter and stock number
719-9728
8.59 to 12.45mm diameter.
HDP-22 d-sub connector kits stock number
718-3953
and
718-3941
accept a maximum inner cable bundle diameter (max. cable diameter after jacket and braid are removed) of 8.39mm, stock number
719-9725
8.89mm diameter and stock number
719-9728
11.43mm diameter.
HDP-22 d-sub connector socket kit stock number
782-9558
accepts a recommended cable outer diameter of 8.59 to 14.28mm, stock numbers
782-9524
and
782-9530
4.83 to 8.38mm and stock number
782-6149
5.51 to 11.05mm diameter.
The size 22 DF contacts for these AMPLIMITE HDP-22 d-sub connector kits must be ordered separately, please see stock numbers
314-8026
and
680-9692
typically. The ferrules must also be ordered separately, please see stock numbers
301-8199
and
717-4669
typically.
Note
For male screw retainers see stock numbers
450-9208
and
717-4498
typically
For female screwlocks see stock numbers
717-4543
,
450-9270
and
717-4533
typically
For locking post assembly see stock number
450-9365
For 2 piece spring latch see stock number
450-9321
TE Connectivity AMPLIMITE D-Subminiature Connectors
