Thalassa PLS General Purpose Insulating Enclosure Modular Boxes With Front Cover.
The Thalassa PLS range are multi-purpose enclosures from Schneider Electric have a fibreglass reinforced polyester body and transparent polycarbonate or opaque polyester lid. It has mounting bosses already moulded with M6 inserts. The lid, which is included, secured with 4, 6 or 8 screws according to size. The Thalassa PLS general purpose enclosure can be connected horizontally and vertically to form sets for different functions.
Thalassa PLS Range Features and Benefits
Total insulation for realisation of Class II equipment
IP65 and IK09 rated Enclosures
UL/CUL certification
Self-extinguishing 960?° test
Suitable for indoor or outdoor use
No Electrical contact risk
Resistant to harsh atmospheres
Can be used in a large temperature range
Easy to machine and the machining does not produce corrosion
Halogen free
Long life lasting without maintenance
Locking system is outside of the protected area
Perforated 1 piece chassis plate and 4 stainless steel fixing lugs are available separately
Typical Enclosure Applications
General purpose / Multi-Purpose
Test and Measurement Instrumentation
Medical Tools
Transportation Equipment
Industrial, electrical distribution controls
Infrastructure, Industry
Lighting Applications
Public areas
Indoor and outdoor environments
(IP) Ingress Protection and what it means?
Polycarbonate material
grey (RAL 7035) colour
IP66 degree of protection
Can the General Purpose enclosures be used outside?
Yes, for example general purpose enclosures with an IP65 rating, meaning it is protected against dust, and waterproof.

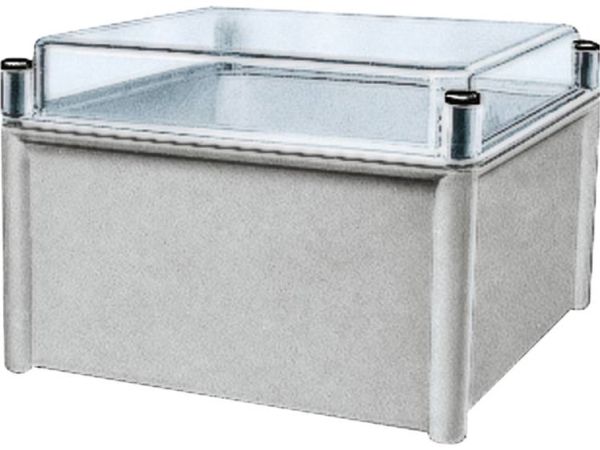

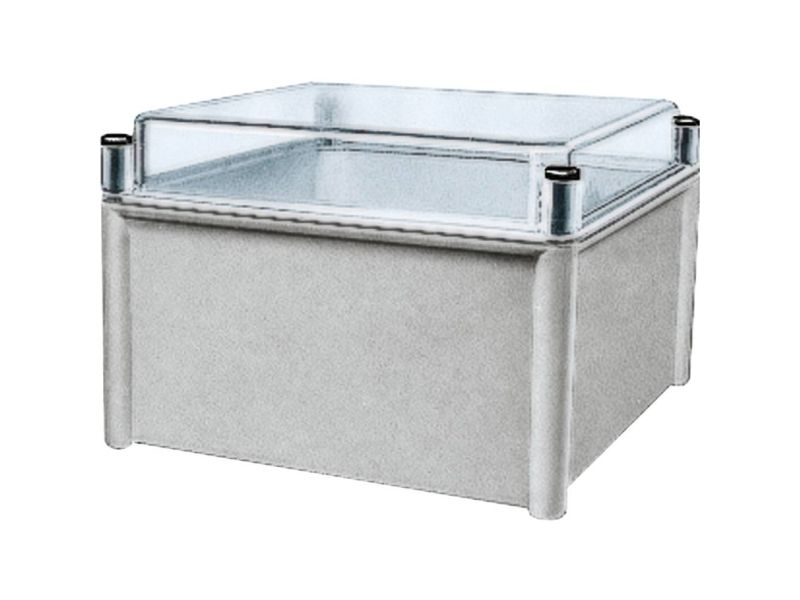

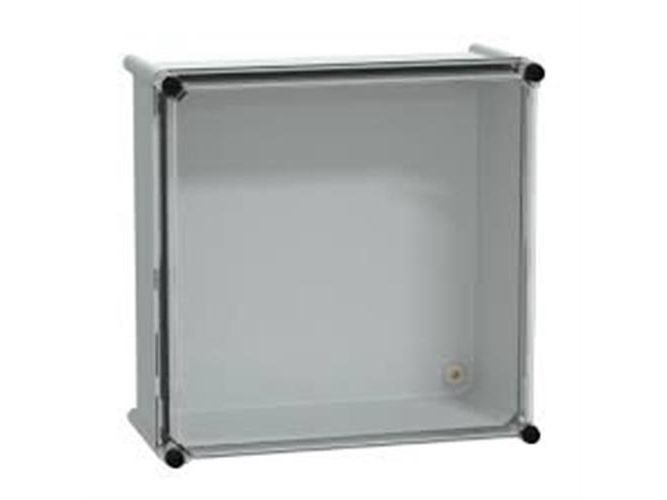

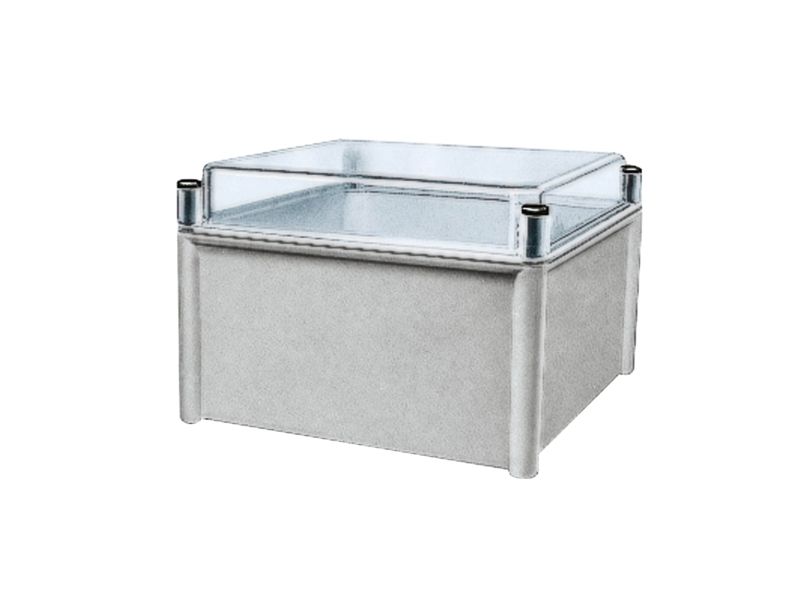

NSYPLS3636G Thalassa PLS General Purpose Enclosure with Front Cover.

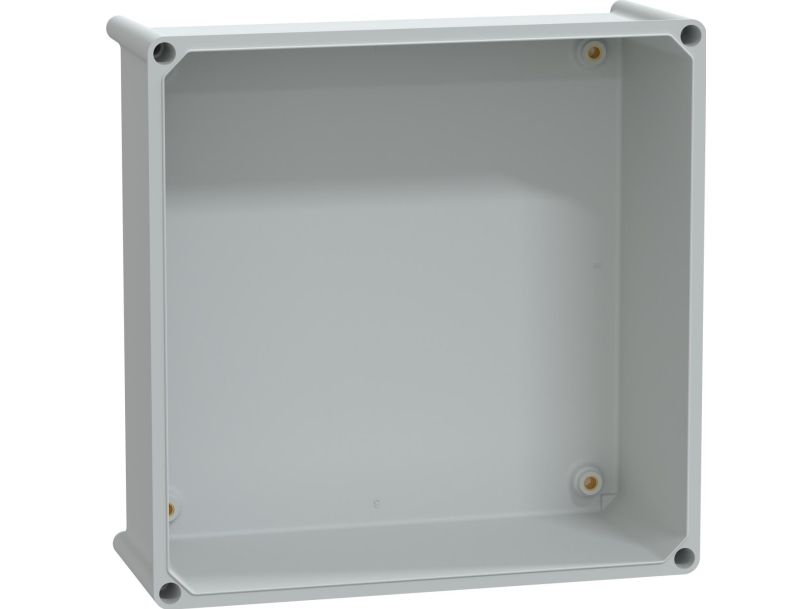

Enclosure body Rear and front cover.
Multi-purpose
Insulating modular enclosure.
Wall mounting.
One-piece moulded enclosure body (polyester reinforced with fibreglass).
One-piece Transparent Low cover (polycarbonate).
Slot screw locking.
Lid / enclosure cover is removable.
Insulation class II.
UL certified.
IP66 conforming to IEC 60529.
IK09 conforming to IEC 62262.
Fire Resistant 960?° ?°C conforming to IEC 62208.
Green Premium enclosure.
What is included?
1 x Enclosure rear, 1 x Enclosure Low transparent cover, Locking screws.
Standards
NEMA classification 13, IEC 62208, NEMA 4X.
