Fischer 547495, Edelstahl, Stahl, Perforiert, U-förmig, 50 Stück(e), Feuerverzinkte Beschichtung, Zinkbeschichtung

Artikelnummer: [6213066] | Produzent: Fischer | Modell nummer: 547495 | EAN: 4048962336757
Externen Lager (7-9 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 7-9 Werktage.. Mehr Info
Versandoptionen  - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
3,57
Versand mit DHL zur Adresse
11,90
Versand mit GLS - PaketShop
9,16
Versand mit GLS zur Adresse
11,90
Alle Versandoptionen anzeigen (4)
EUR 115,63
ex. MwSt. 97,17
Gesamtbetrag inkl. Versand. 119,20
Lesen Sie weitere Spezifikationen und Beschreibung

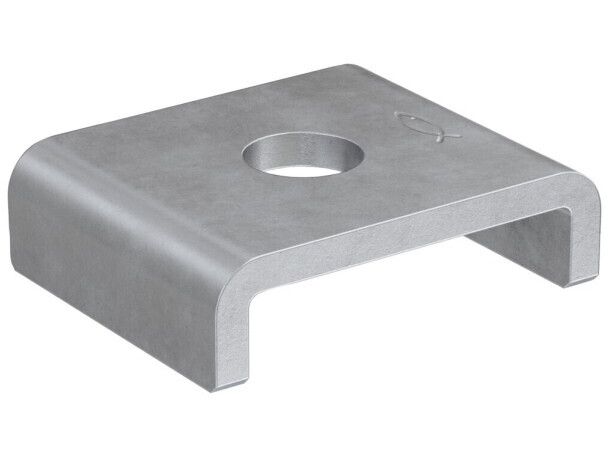

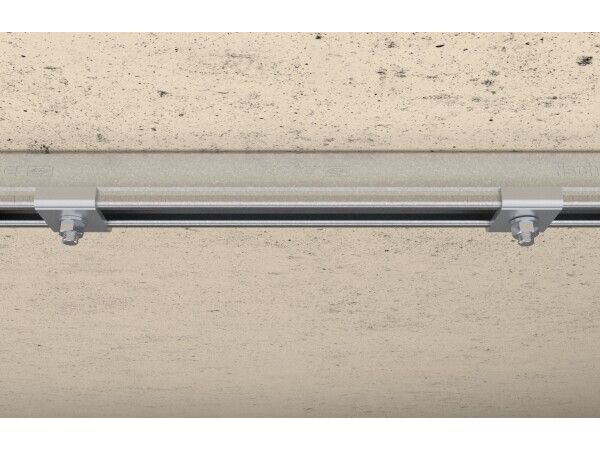

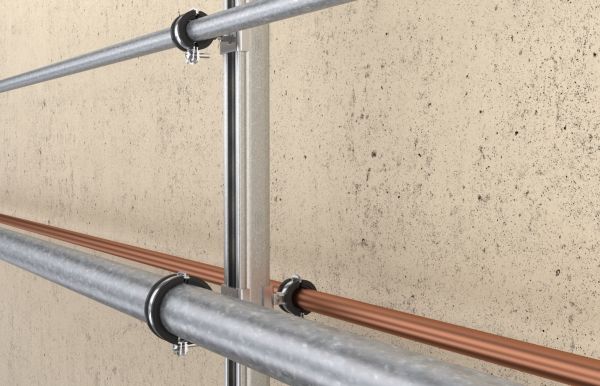

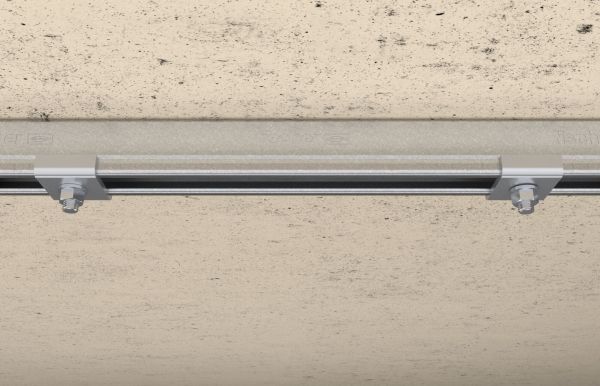

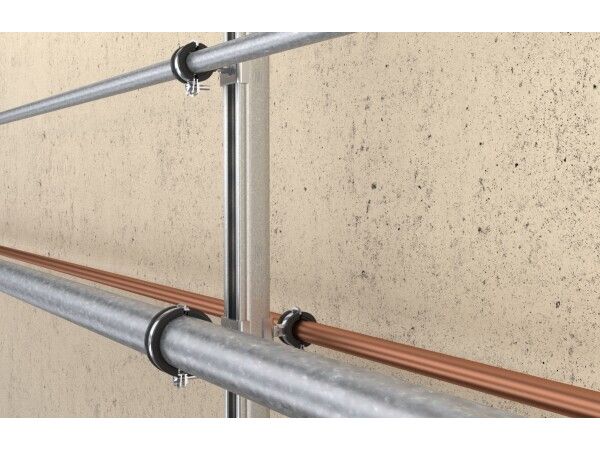

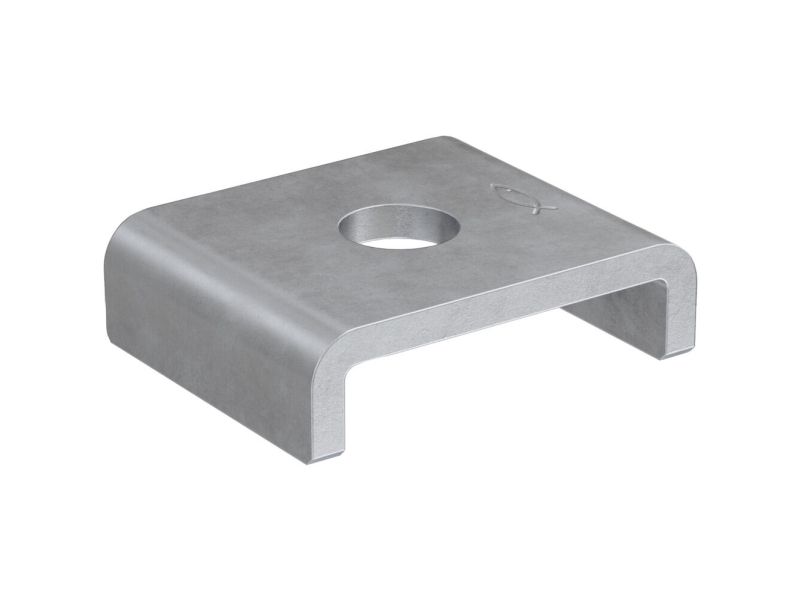

The fischer channel washer HK 41 is a connector that is used to stabilise the mounting channel profile. The U-shape of the channel washer effectively prevents the profile from bending. Its form also enables a quick and easy push-through installation. fischer offers the HK41 with the standard perforations 8.5 mm, 10.5 mm, 12.5 mm and 17 mm. The galvanised zinc design is suitable for installations in buildings and the hot-dip galvanised and stainless steel designs are suitable for installations outside and in highly corrosive environments. The fire protection certificate offers added safety.

Advantages
- The U-shape of the channel washer prevents the profile from bending effectively.
- The shape of the channel washer makes the push-through installations of channel profiles quick and easy.

Properties
- Material: steel S235 JR (material no.: 1.0037) acc. to DIN EN 10025
- Zinc plating: hot-dip galvanised, min. 45 µm, acc. to DIN EN ISO 1461
