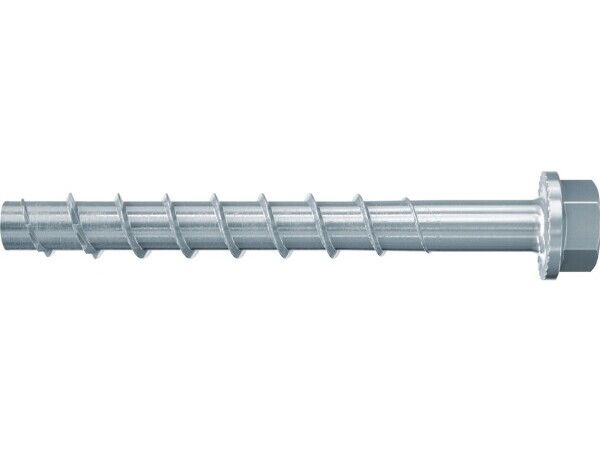

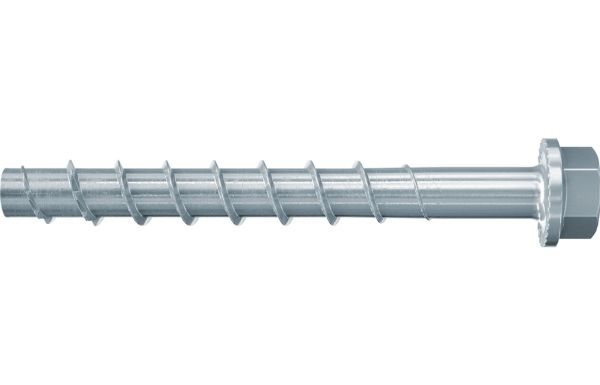

Fischer 558227, Schraube, Galvanisiertes Stahl, Beton, Teilgewinde, Inbusschlüssel (Sechskant), SW21

The high-performance concrete screw for absolute installation ease.
Advantages

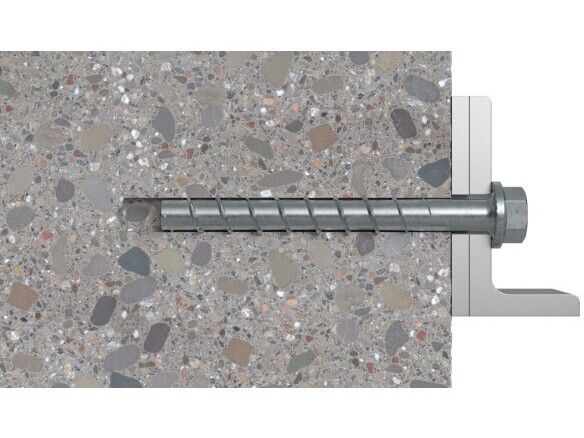

- With up to 3 embedment depths, the UltraCut FBS II US allows for the same screw to be used for different component thicknesses.
- The special saw tooth geometry enables fast cutting into the concrete.
- Drill holes do not need to be cleaned during vertical installation (ceiling and floor). For floor fixings the hole must be drilled 3x drill hole diameter deeper.
- Expansion-free anchoring (undercut) allows for lowest edge- and axial spacings.
- The ETA approval covers applications in cracked concrete and seismic power categories C1 and C2.

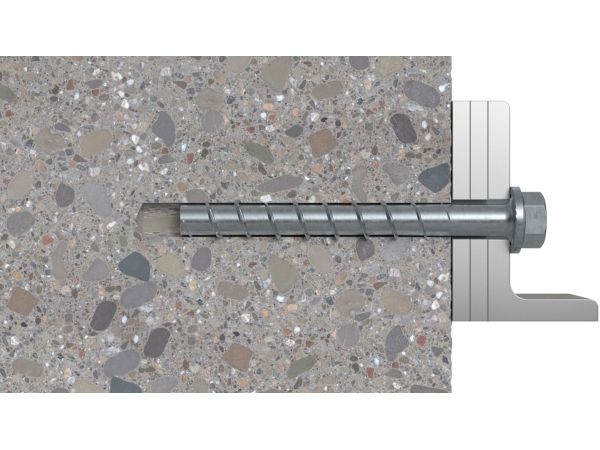

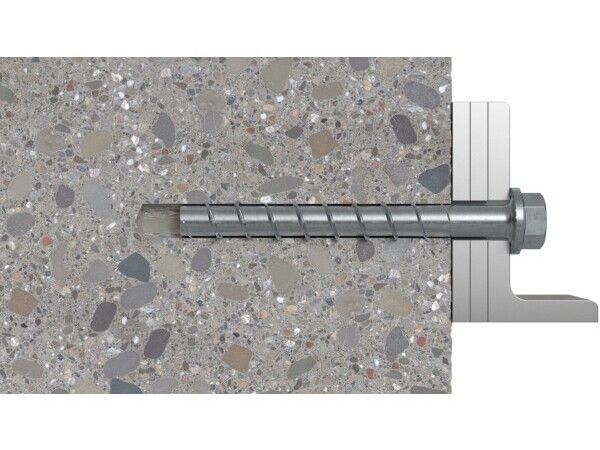

- The approved adjustment for the concrete screws allows the screw to be unscrewed twice to place maximum 10 mm packing below the base plate head or to align the attached part, and then to tighten the screw again.

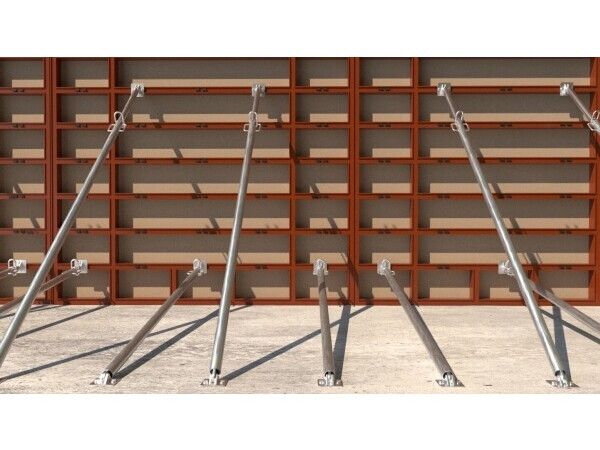

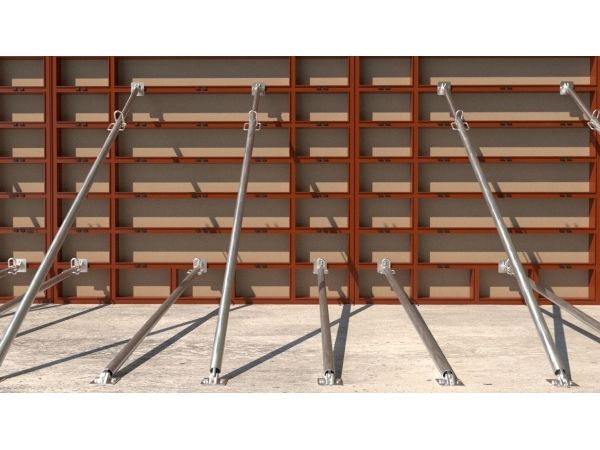

- The checking gauge allows for reuse in temporary fixings (e.g. inclined supports) covered by the national approval.

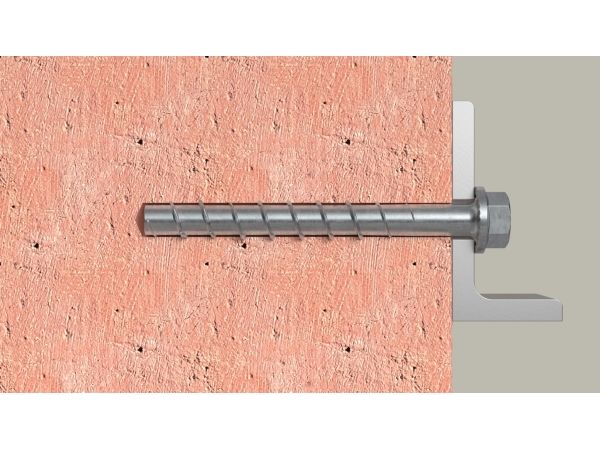

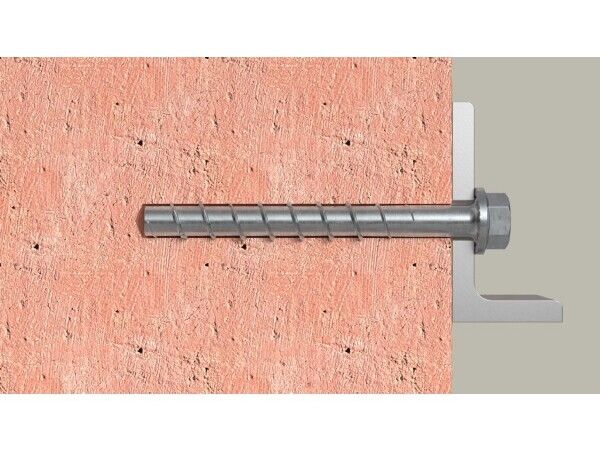

- The concrete screw FBS II 6-10 in zinc-plated steel, multiple-coated steel CP and stainless steel R has an ETA for bricks of clay (EN771-1), solid sand-lime brick (EN771-2) and perforated sand-lime brick (EN771-2) for a flexible use in different substrates.
- The installation of the concrete screw FBS II 6-10 in zinc-plated steel, multiple-coated steel and stainless steel R in masonry brick can be made in the joints or in plastered substrates also in groups.

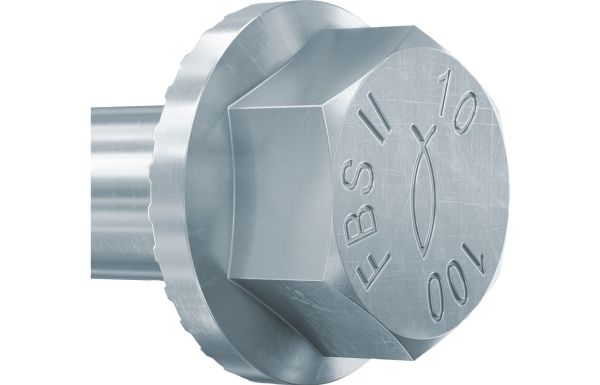

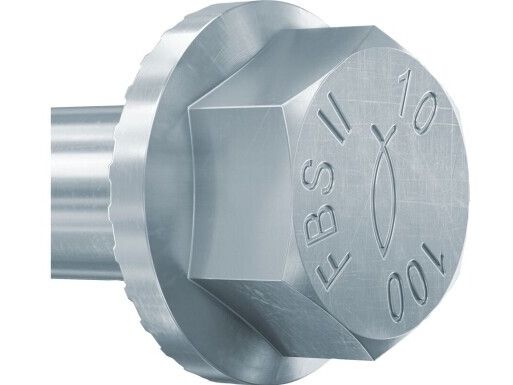

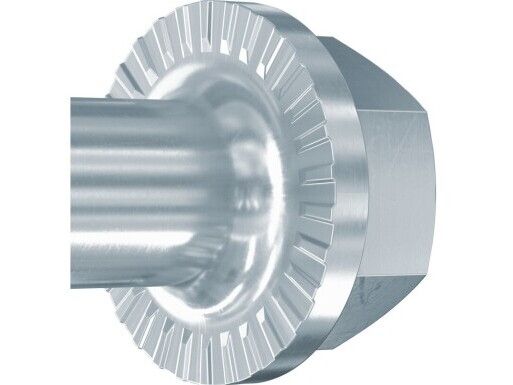

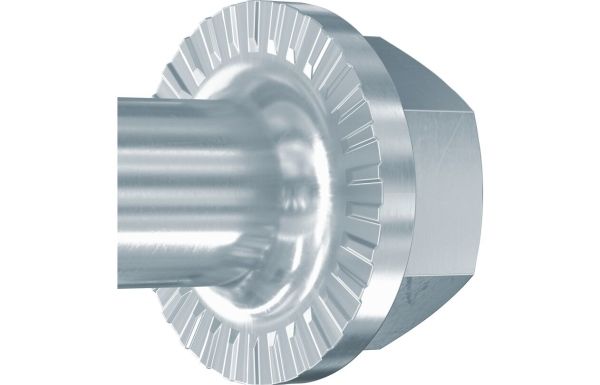

The fischer concrete screw UltraCut FBS II US is a powerful anchoring solution with top installation comfort. The concrete screw with its pressed-on washer is ideal for slot fixations and the anchoring of wooden constructions as well as beams and sills. The European Technical Approval for cracked concrete and non-cracked concrete as well as for seismic loads and classification into fire resistance class R 120 guarantee even more safety. The saw tooth geometry enables a quick and easy installation. No drill hole cleaning is required for installation in ceilings and floors. The expansion-free anchorage system enables low edge and axial spacings.

Functionality

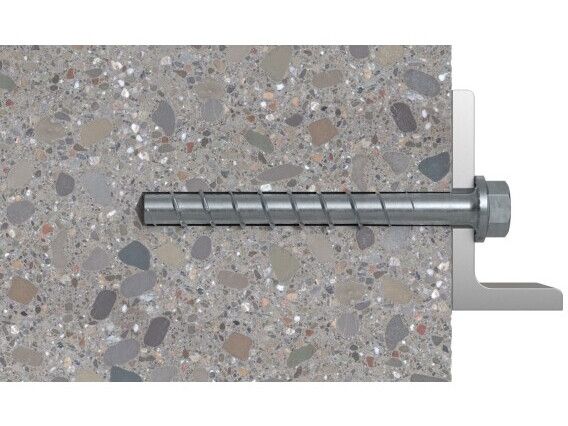

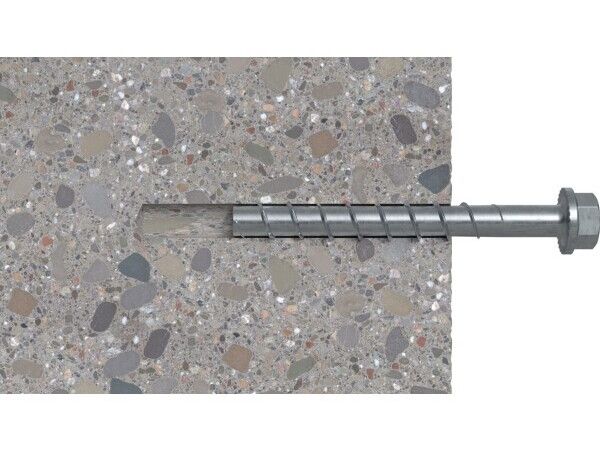

- The UltraCut FBS II is recommended for the push-through installation.
- Drill holes do not need to be cleaned during vertical installation (ceiling and floor). For floor fixings the hole must be drilled 3x drill hole diameter deeper.
- We recommend using a tangential impact screwdriver with a suitable impact screwdriver socket or an internal TX drive.

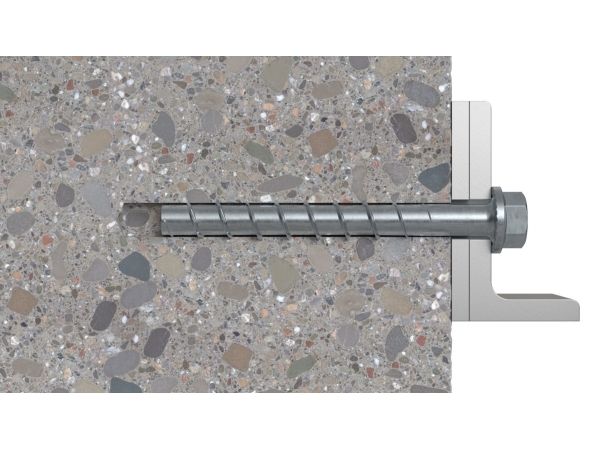

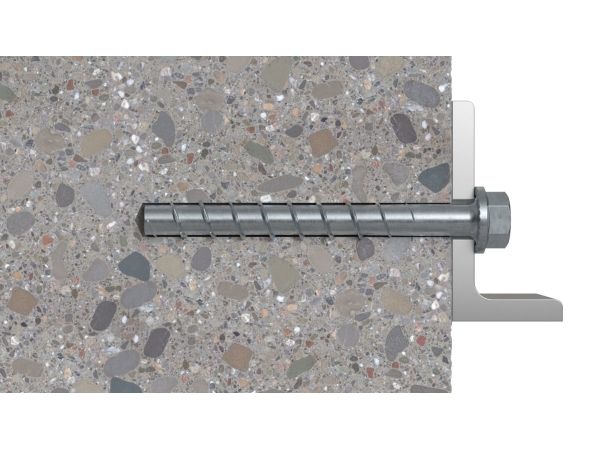

- The screw is installed correctly when the screw head sits flush on the fixture and cannot be screwed in deeper (visual setting control).
