Whadda WSI8055N, Elektronischer Bausatz, Ingenieurswesen, 9 Jahr(e)

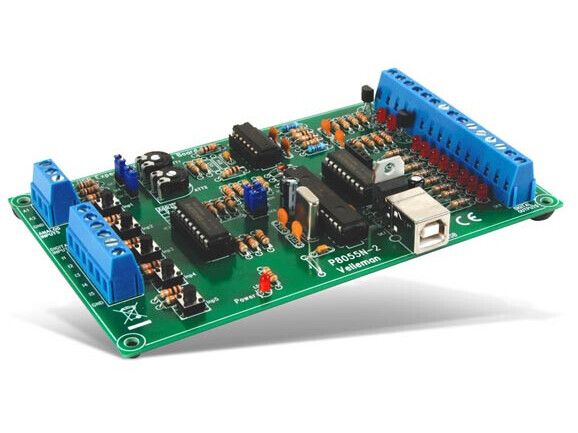

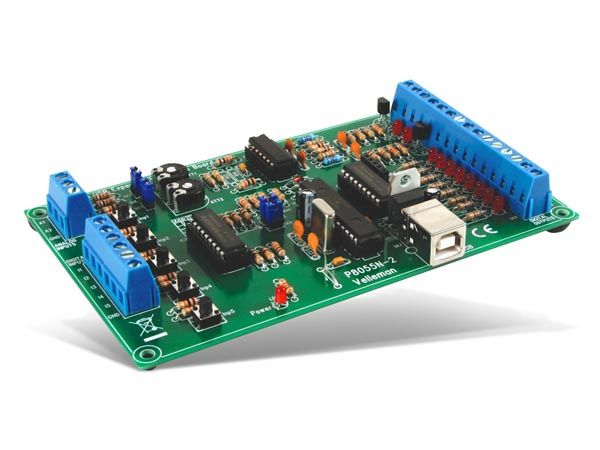

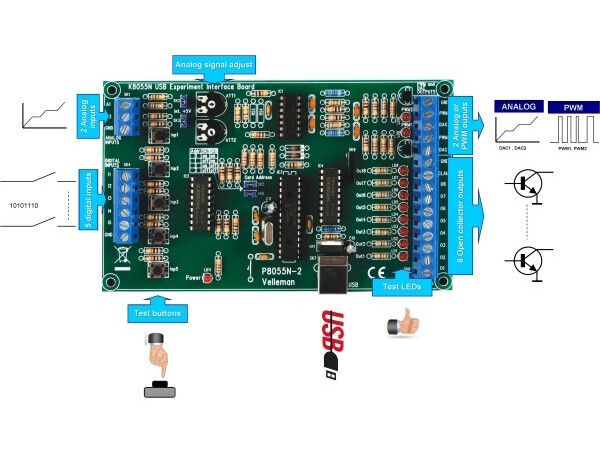

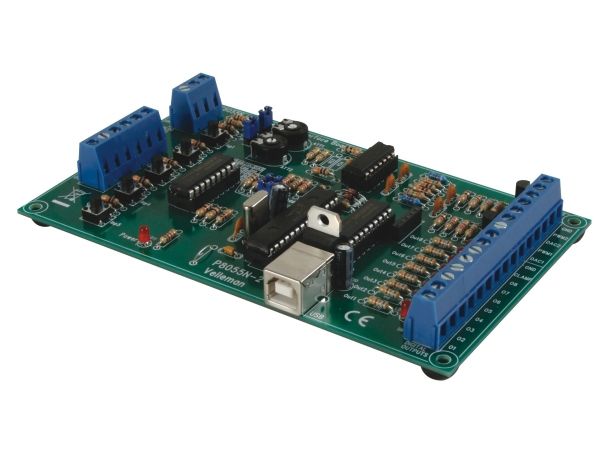

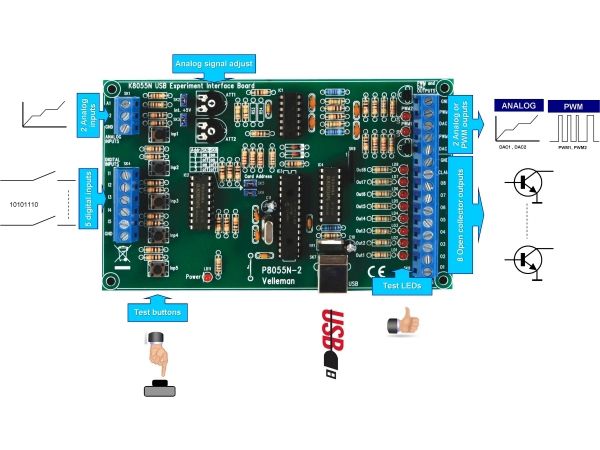

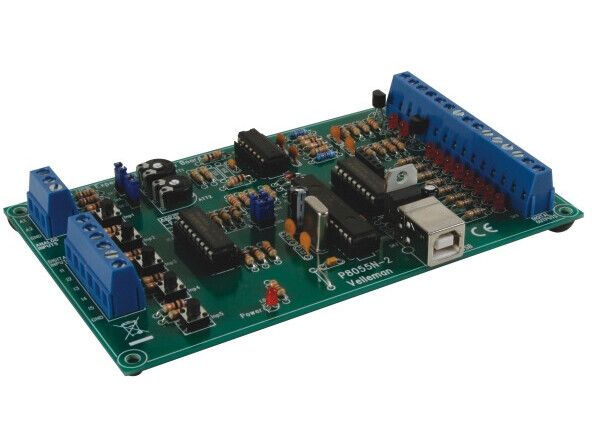

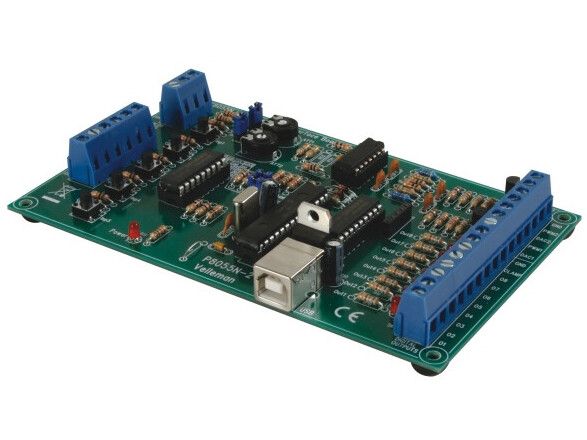

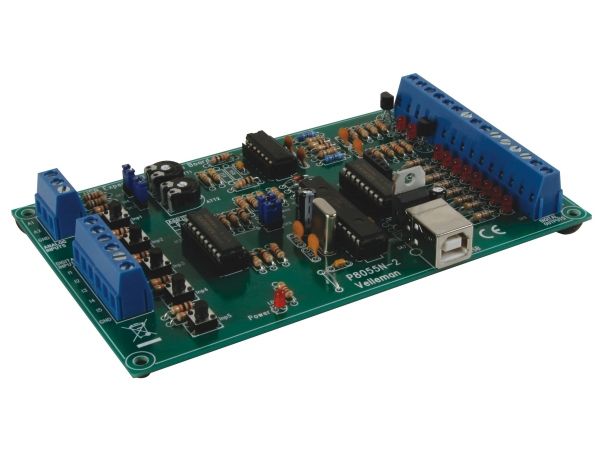

This interface board has 5 digital input channels and 8 digital output channels. In addition, there are 2 analogue inputs and 2 analogue outputs with 8 bit resolution. The number of inputs/outputs can be further expanded by connecting more (up to a maximum of four) cards to the PC’s USB connectors. All communication routines are contained in a Dynamic Link Library (DLL). You may write custom Windows (XP, Vista, Windows7) applications in Delphi, Visual Basic, C++ Builder or any other 32-bit Windows application development tool that supports calls to a DLL. Source code examples for Visual Basic, Visual C++, Visual C#, Excel, Delphi and Borland C++ builder are available.

Hard- and software are downwards compatible with our previous versions.

This product is a replacement of: K8055N,K8055


DIAGNOSTIC / TEST SOFTWARE:
- separate output / input test
- clear all / set all function
- counter function on inputs 1 and 2 with adjustable debounce (max 20kHz depends on total I/O load)
- analogue output set sliders
- analogue input bar-graph indication
- minimum system requirements:
- 1 GHz or faster 32-bit (x86) or 64-bit (x64) processor
- USB 1.1 or higher connection
- Windows XP or later
- also available in mounted version:
