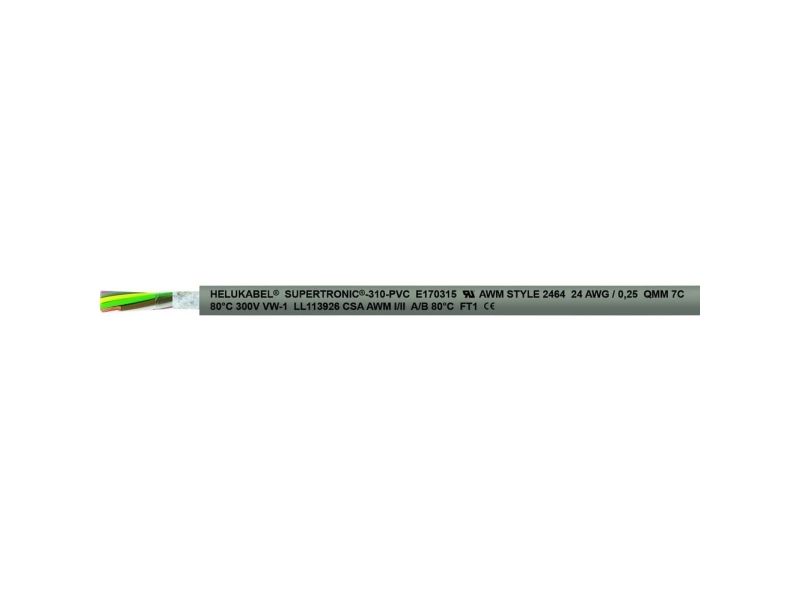

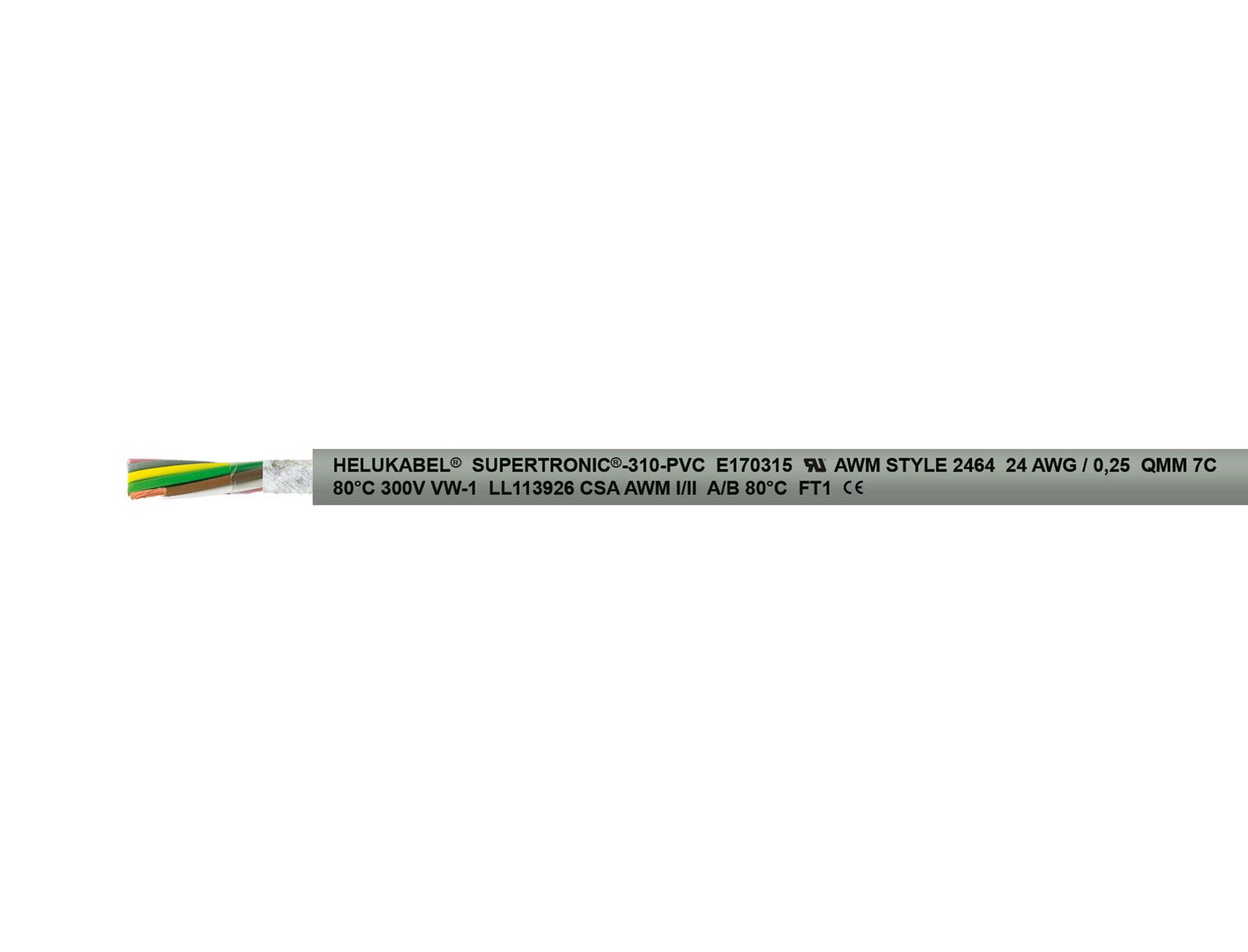

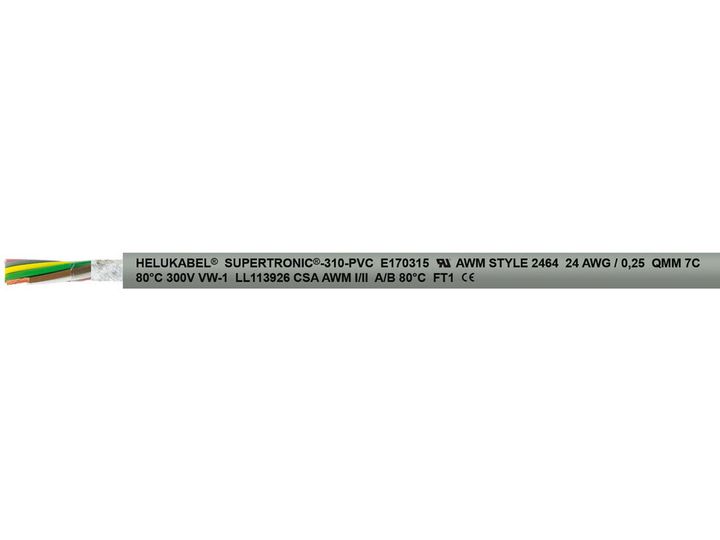

Helukabel 49902 Schleppkabel S-TRONIC 310-PVC 12 x 0,25 mm² Grau 100 m

Cable Structure
Copper wire bare, finely stranded, unilay with short lay lengths
Core insulation: Special-PVC acc. to UL-Std. 1581 Tab. 50.183 (semirigid)
Core identification acc. to DIN 47100, colour coded
x = without protective conductor
Cores stranded in layers with optimally matched lay lengths
Fleece wrapping
Outer sheath: oil-resistant special PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM5), UL-Std. 1581
Sheath colour: grey (RAL 7001)
Length marking: in metres
Properties
resistant to: oil
low adhesion
suitable for use in drag chains
the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Tests
flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2, UL VW-1, CSA FT1
oil-resistant acc. to DIN VDE 0473-811-404 / DIN EN 60811-404 / IEC 60811-404
certifications and approvals:
EAC
Notes
the conductor is metrically (mm²) constructed, AWG numbers are approximated, and are for reference only
for use in energy supply systems:
1) the assembly instructions must be observed
2) for further application parameters, please refer to the selection tables
3) for special applications, we recommend contacting us and using our data entry form for energy supply systems
Application
Used as a highly flexible PVC drag chain cable suitable for frequent and fast lifting and bending stress in machine and tool construction, robotics, and in permanently moving machine parts. A long service life guarantees reliable function and high efficiency. Designed for the export-oriented machine construction industry, specifically for the USA and Canada.
