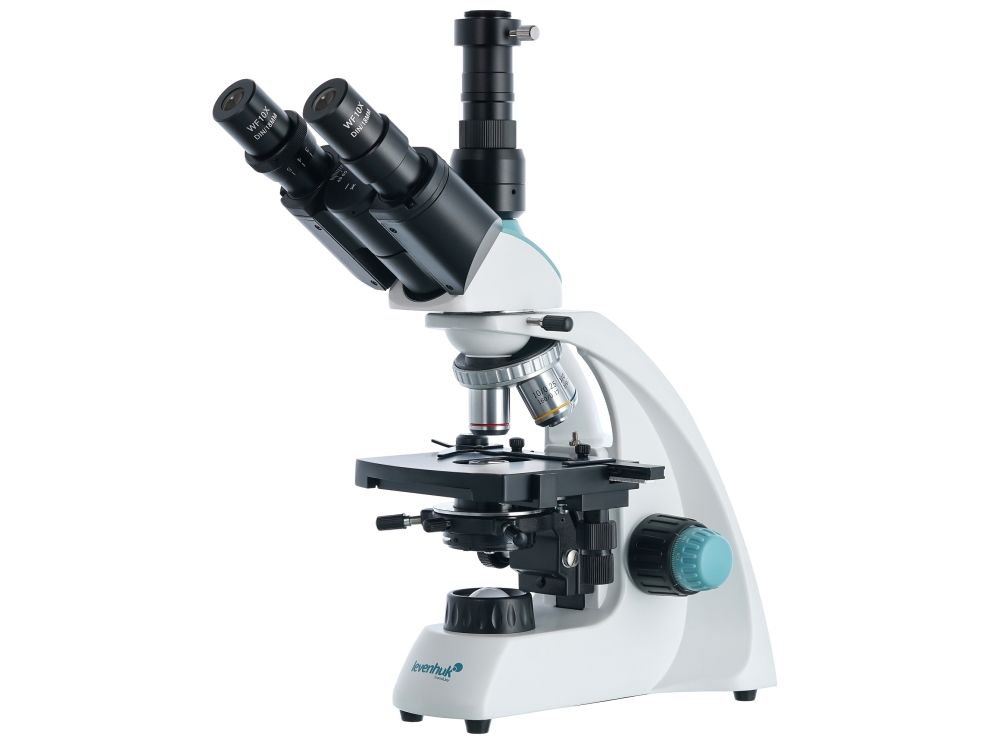

The Levenhuk D400T is a digital biological microscope with a 3.1MP camera included in the kit. This instrument can be used for visual observations as well as photographing samples, video shooting, and transmitting the image to the screen. The image resolution reaches 2048х1536 pixels. This microscope is a great choice for a laboratory, veterinary office, or educational institution.
It features a trinocular head. The visual module is inclined, which prevents tensing your neck muscles up during long hours of observations. The eyepiece tube for a digital camera (included) is vertical. The kit includes two wide-field eyepieces with 10x magnification. The optical system includes two wide-field eyepieces with 4x, 10x, 40x, and 100x magnification. The front lenses of the 40x and 100x objectives are equipped with protective spring-loaded frames. Moreover, a 100x objective lens can be used for oil immersion.
There is a mechanical scale for fixing microscope slides. A bright LED light and collector le
| Marke | Levenhuk, Inc., USA |
| Garantie, Jahre | lebensdauer |
| EAN | 0753215775033 |
| Verpackungsgröße (LxBxH), cm | 42x21.5x29 |
| Versandgewicht, kg | 4.16 |
| Typ | biologisch, Licht/Optik, digital |
| Kopf | trinokular |
| Optisches Material | optisches Glas |
| Düse | 360° drehbar |
| Neigungswinkel des Kopfes | 30 ° |
| Vergrößerung, x | 40 - 1000 |
| Vergrößerungsbereich | von 800x bis 1280x |
| Durchmesser des Okulartubus, mm | 23.2 |
| Okulare | WF10x/18mm (2 Stk.) |
| Zielsetzungen | achromatisch: 4x, 10x, 40xs, 100xs (Ölimmersion) |
| Drehbarer Objektivrevolver | für 4 Ziele |
| Pupillendistanz, mm | 48 - 75 |
| Stufe, mm | 115x110 |
| Verfahrbereich des Tisches, mm | 55/20 |
| Merkmale der Bühne | mechanisch zweischichtig, mit einer mechanischen Skala |
| Dioptrieneinstellung des Okulars, Dioptrien | ±5 |
| Verflüssiger | Abbe N.A. 1,25 mit einer Irisblende und einem Filterhalter |
| Diaphragma | iris |
| Schwerpunkt | koaxial, grob (12mm) und fein (0,002mm) |
| Körper | metall |
| Beleuchtung | LED |
| Einstellung der Helligkeit | ja |
| Stromversorgung | 3 AA-Batterien (nicht enthalten), 110-220 V, über AC-Adapter (enthalten) |
| Stromversorgung: Batterien/eingebauter Akku | ja |
| Art der Lichtquelle | mit einem Kollektor, 1W LED |
| Lichtfilter | blau, grün, gelb |
| Megapixel | 3.1 |
| Sensor-Element | 1/2" |
| Pixelgröße, μm | 3.2х3.2 |
| Empfindlichkeit, V/lux-sec@550nm | 1.5 |
| Videoaufzeichnung | ja |
| Bildfrequenz | bis zu 11 Bilder pro Sekunde |
| Dynamikbereich, dB | 75 |
| Verwendungsort | okulartubus (ersetzt ein Okular) |
| Bildformat | *.jpg, *.bmp, *.png, *.tif und andere |
| Spektralbereich, nm | 400-650 |
| Methode der Exposition | ERS (Elektronischer Rolling Shutter) |
| Weißabgleich | automatisch/manuell |
| Belichtungskontrolle | automatisch/manuell |
| Software, Treiber | LevenhukLite |
| Programmierbare Optionen | belichtungssteuerung, Bildgröße, Helligkeit |
| Ausgabe | USB 2.0 |
| Systemanforderungen | Betriebssystem Windows XP/Vista/7/8/10/11 (32 und 64 Bit), Mac 10.12, Linux Ubuntu 14.04; 2.8GHz Intel Core 2 und höher, 2GB RAM, USB 2.0, CD-ROM |
| Stromversorgung der Kamera | über USB-Kabel |
| Benutzer-Ebene | erfahrene Benutzer |
| Schwierigkeitsgrad der Montage und Installation | einfach |
| Software-Sprache | Windows: Englisch, Russisch, Französisch, Deutsch, Polnisch, Chinesisch, Türkisch, Mac und Linux: Englisch |
| Video-Format | ausgabe: *.wmv, *.avi, *.h264 (Windows 8 und höher), *h265 (Windows 10 und höher) |
| Anmeldung | labor/Medizin |
| Beleuchtungsstandort | unter |
| Forschungsmethode | hellfeld |
| Inklusive Digitalkamera | ja |
| Staubschutzhülle/Koffer/Beutel im Set | ja |
| Maximale Auflösung | 2048x1536 |
| Etui/Koffer/Tasche im Set | staubschutzhülle |
